BTS80 EN6(53NM) FLOOR SPRING in Grey
1 1

Dormakaba BTS80 EN-6 Door Closer Floor Spring Adjustable, Hold Open

$1,263.77
$1,263.77 $1,263.77
Save 0
Sold out
Tax included.
p>

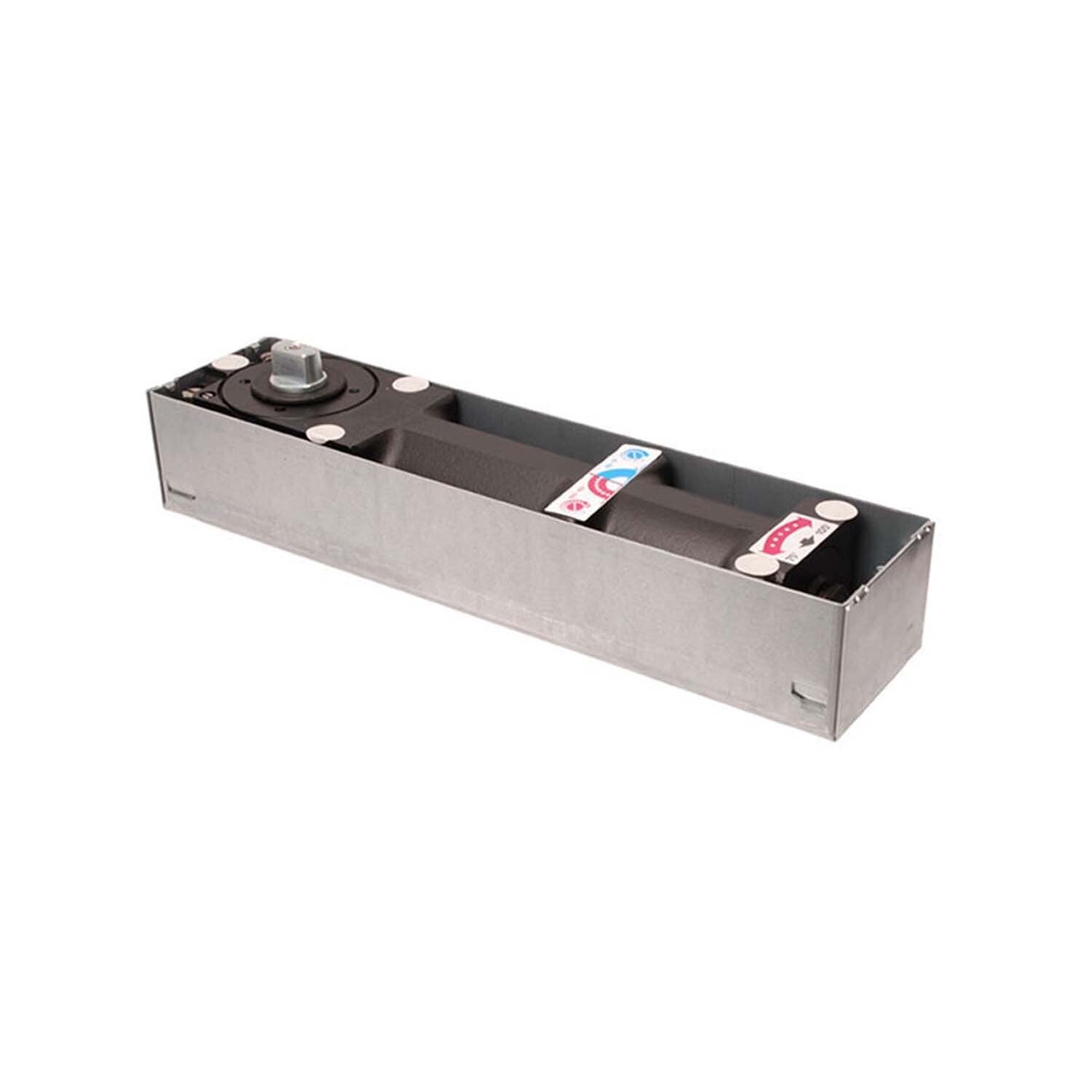

Dormakaba BTS80 EN-6 Door Closer Floor Spring Adjustable, Hold Open

The BTS 80 Series of floor-concealed door closers offer adaptability to almost any installation. The closer's compact body permits its use where a larger closer would be prohibitive. Versatility allows installation in thin slab concrete subfloor construction. A wide selection of interchangeable spindles makes the BTS80 suitable for virtually any floor covering or threshold application.

Spring Strength: EN6

Internal and External Doors Up to 1400mm

Max Leaf Weight 300kgs

Features:

For the trade
  • Reduced stock requirements because of separate, interchangeable spindles.
  • Slim product range offering all key functions. For the installer
  • Suitable for installation with LH or RH single and double action doors.
  • Interchangeable spindles enable easy adaptation to structural conditions-even when retrofitted. For the architect/specifier
  • Concealed installation for maximum visual elegance.
  • All essential functions provided.
  • Proven, robust design capable of withstanding leaf weights of up to 300 kg (BTS 80). For the user
  • Constant, temperature-independant closing cycle.
  • Highly efficient mechanism gives maximum user convenience.

    Specifications:

  • Length: 341mm
  • Width: 78mm
  • Height: 60mm
  • Weight: 7.1kg
  • Spring strength: EN6
  • Standard and External Doors: Up to 1400mm
  • Max. Leaf Weight: 300kg
  • Hold Open: Adjustable
  • Backcheck: Yes
  • Delayed Action: Yes
  • Max Opening: 175 Degees

    • Delivery Time:

    Downloads:

    Technical Brochure
