TS92 G N EN 1-4 PUSH SIDE SIL, CAM ACTION (CONTUR) in Silver
1 1

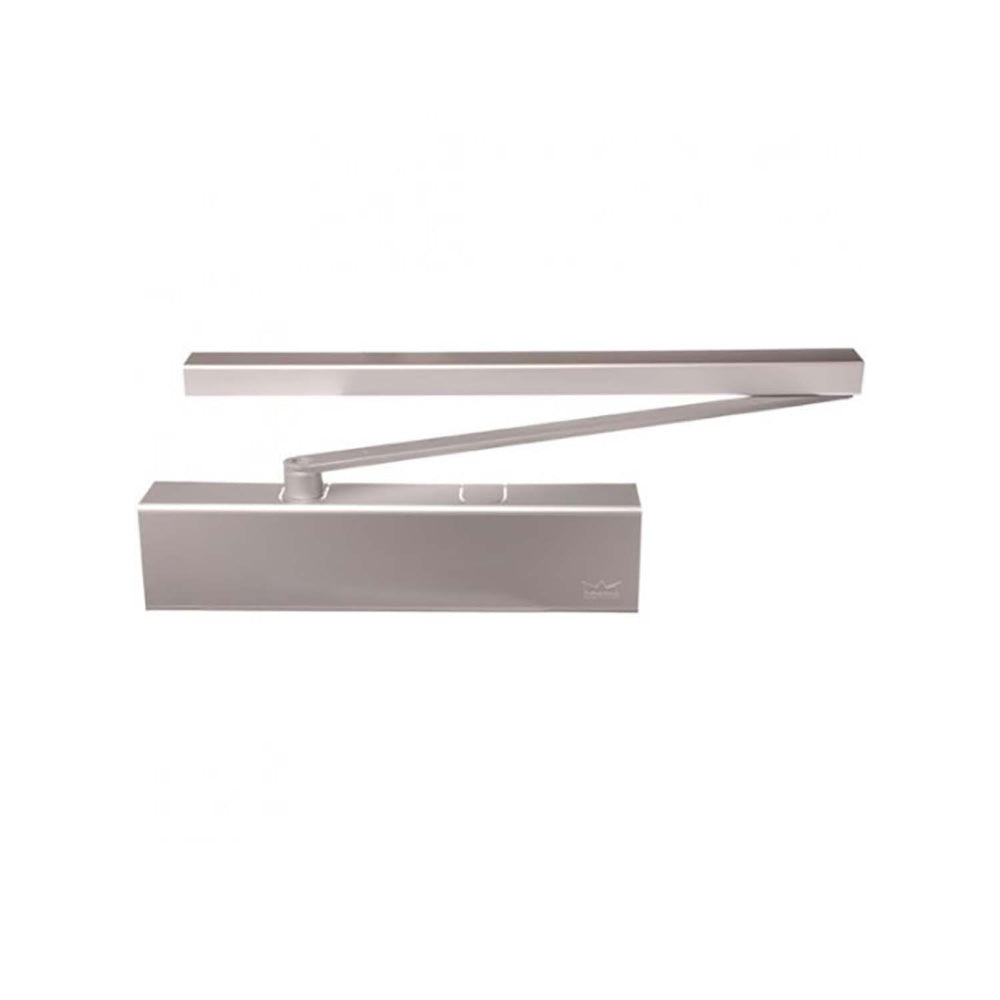

DormaKaba TS92G EN1-EN4 Cam Action Push Side w/Arm

$573.21
$573.21 $573.21
Save 0
Sold out
Tax included.
  • SKU:
    DCDK.TS92GEN1-EN4.SIL
  • Vendor:
    Dormakaba

DormaKaba TS92G EN1-EN4 Cam Action Push Side w/Arm

The dormakaba TS92G EN2-4 closer is non-handed closer suitable for interior doors and comes with a linear drive mechanism with heart-shaped cam (Contur design). With adjustable closing speed of 180° - 15° and a latching action independently adjustable with a closing action of 15° - 0° with two separate vales.

Variable Closign Force: EN1-EN4

Special model for push side door leaf fixing/pull transom fixing.

Suitable for fire and smoke check doors where the cushioned limit stay is also used.

Suitable for installation on doors up to 1100mm (W).

Specifications:

  • Length: 281mm
  • Width: 47mm
  • Height: 65mm
  • Closing force Adjustable Size: EN 1-4
  • Standard doors: up to 1100mm
  • External doors, outward opening: No
  • For fire and smoke check doors: Yes
  • Non-handed design: Yes
  • Arm assembly type: Slide channel
  • Closing speed and latching action independently adjustable at two separate valves:
      • 180 degrees to 15 degrees
      15 degrees to 0 degrees
  • Without Backcheck
  • Without Delayed action
  • Weight: 2.0 kg

    • Delivery Time:

    Downloads:

    Technical Brochure
