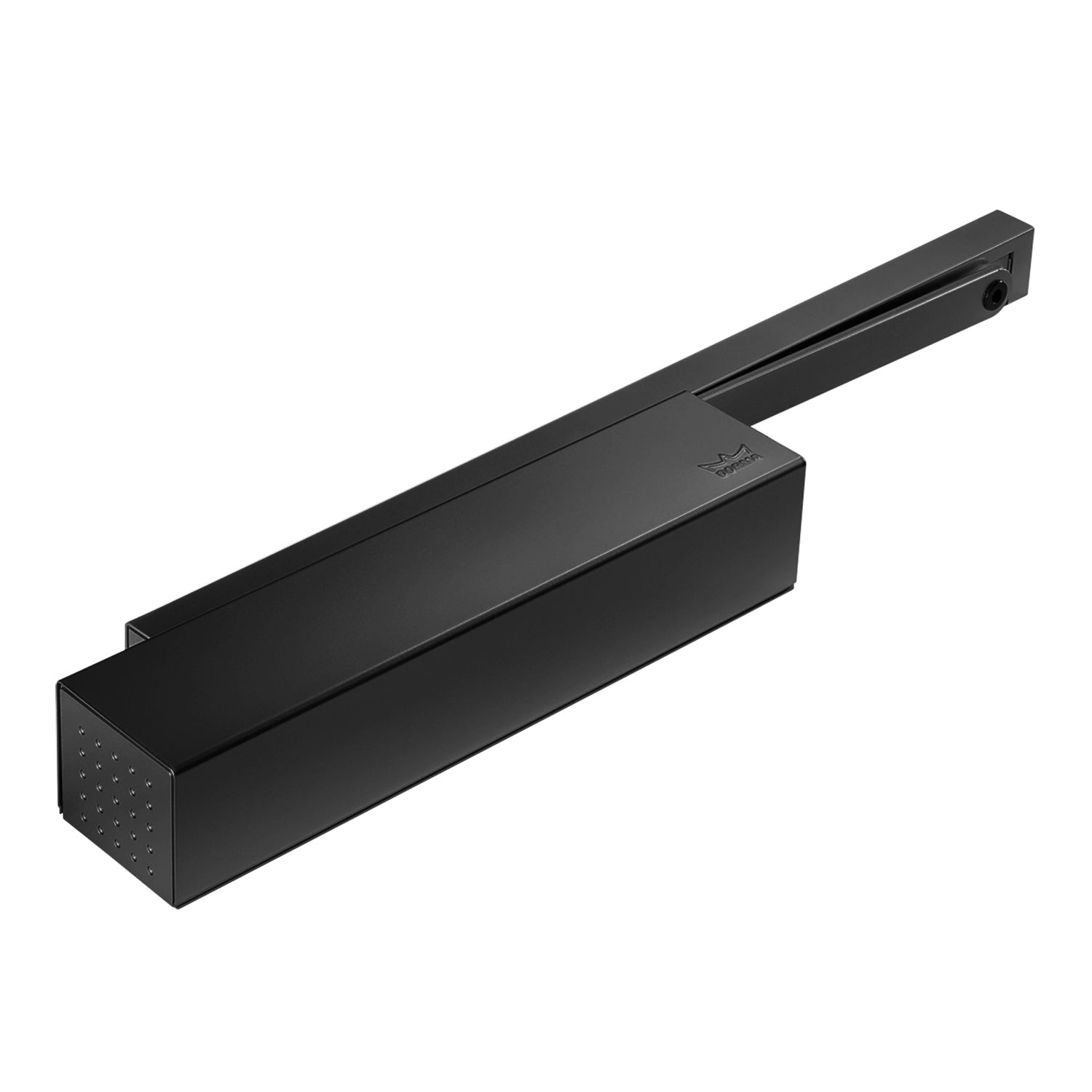

DormaKaba TS92G EN1-EN4 Cam Action Push Side w/Arm - BLACK

The dormakaba TS92B closer is non-handed closer suitable for interior doors and comes with a linear drive mechanism with heart-shaped cam (Contur design). With adjustable closing speed of 180° - 15° and a latching action independently adjustable with a closing action of 15° - 0° with two separate vales.

Variable Closign Force:EN1-EN4

Standard model for pull-side door leaf fixing/push-side transom fixing.

Suitable for fire and smoke check doors where the cushioned limit stay is also used.

Suitable for installation on doors up to 1100mm (W).

Specifications:

  • Length: 281mm
  • Width: 47mm
  • Height: 65mm
  • Closing force Adjustable Size: EN 1-4
  • Standard doors: up to 1100mm
  • External doors, outward opening: No
  • For fire and smoke check doors: Yes
  • Non-handed design: Yes
  • Arm assembly type: Slide channel
  • Closing speed and latching action independently adjustable at two separate valves:
      180 degrees to 15 degreess
        15 degrees to 0 degreess
      • Without Backchecks
      • Without Delayed actions
      • Weight: 2.0 kgs
      • Finish: Black

    • Delivery Time:

    Downloads:

    Technical Brochure
