TS93 G N EN 1-5 PUSH SIDE SIL (CONTUR) in Silver
1 1

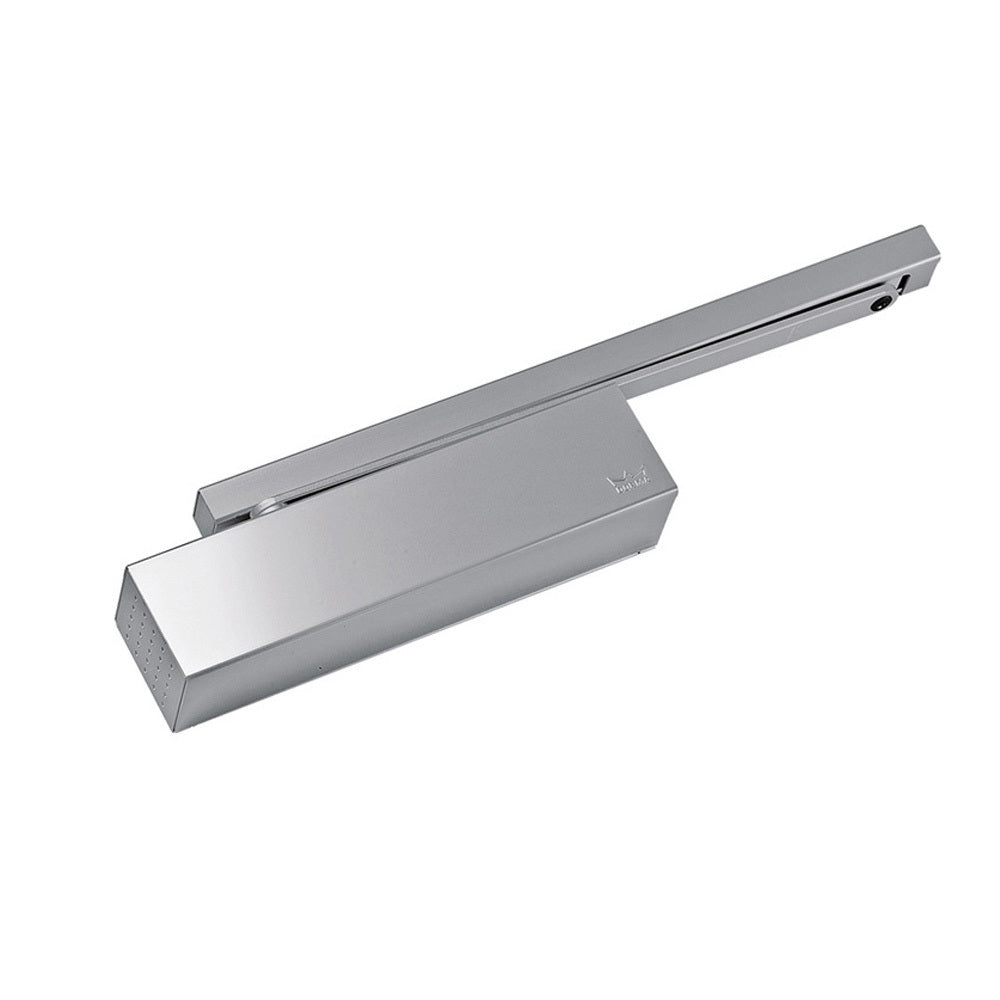

Dormakaba TS93G EN1-EN5 Cam Action, Push Side w/ARM

$954.35
$954.35 $954.35
Save 0
Sold out
Tax included.
  • SKU:
    DCDKTS93GEN1-5.SIL.PUSH
  • Vendor:
    Dormakaba

Dormakaba TS93G EN1-EN5 Cam Action, Push Side w/ARM

The TS 93 cam action door closer system provides a high-quality architectural solution for all project application requirements. The proven dormakaba technology featuring the heart-shaped cam ensures exceptional ease of opening.

The new Contur design offers an even more impressive specification - thanks to:
  • Concealed fixings
  • Height-adjustable G-N slide channel
  • Delayed closing action as standard
  • Smoke detector integrated in the slide channel
  • Siimple, fast installation
    • p style="color:blue;">Variable Closing Force:EN1-EN5

    Suitable for fire and smoke check doors where the cushioned limit stay is also used

    Suitable for single and double doors installation up to 1250mm

    Standard model for pull-side door leaf fixing/push-side transom fixing

    Specifications:

  • Length: 275mm
  • Width: 53mm
  • Height: 60mm
  • Weight: 3.5kg
  • Adjustable Closing Speed: Yes
  • Adjustable Latching Speed: Yes
  • Has Backcheck: Yes
  • Has Delay Action: Yes
  • Has Hold Open: No
  • Has Slide Arm: Yes
  • Spring Strength: EN1-5
  • Suits Push Side Of Door: Yes
  • Fire Rated: Yes

    • Delivery Time:

    Downloads:

    Technical Brochure
