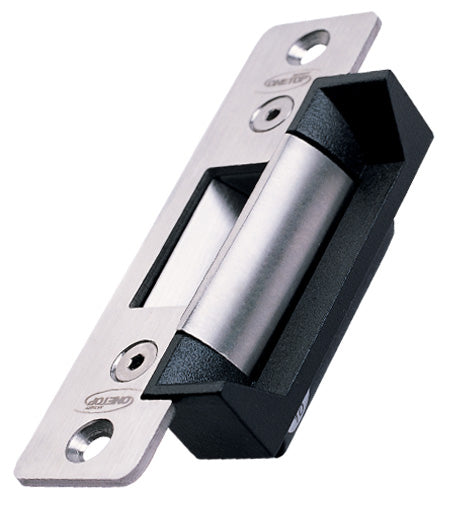

FSH FES10 Ansi Multi-Function Electric Strike, Weather resistant, Non Monitored, 12V/24V, Power to Open/Power to Lock 125L x 42W x 35D in Satin Stainless
1 1

FSH FES10 Electric Strike Non-Monitored 12/24V DC

$166.67
$166.67 $166.67
Save 0
Sold out
Tax included.

FSH FES10 Electric Strike Non-Monitored 12/24V DC, Weather Resistant

An Electric Strike is an access control device used to lock and release doors. Electric Strikes are installed in or on the door frame and work in conjunction with mechanical door locks, on the principle of electronically controlling the rotation of the keeper. This allows doors to be opened without manual retraction of the mechanical door lock.

The FES10 Series electric strikes are designed for light commercial and residential applications. With a small ANSI footprint, the strikes accept either 12 or 24VDC and have been tested to a 4-hour fire rated in accordance with AS 1530.4:2005.

The strikes are easily Power To Lock (PTL) / Power To Open (PTO) field changeable by simply changing over the barbell mechanism. The device is pre-drilled to cater for extension lips, comes with a 5 year warranty and has a holding strength of up to 1000kg.

Specifications:

  • Compatible with door latch depth of up to 15mm
  • Pre-drilled for extension lips
  • 1000kg Holding Force
  • Non Monitored
  • Fail Safe (PTL), Fail Secure (PTO)
  • Holding Strength: Up to 1000kg
  • IP Rating - IP56
  • 4 Hour Fire Rating
  • Multi Voltage, 12VDC,24VDC
  • L= 125 x W= 42 x D= 35mm

    • Features:

  • 60 month warranty
  • Simple Power To Lock (PTL) / Power To Open (PTO) field
  • Recessed Mount
  • Pre-drilled for extension lips

    • Delivery Time:

    Downloads:

    Brochure

    Installation Instructions
