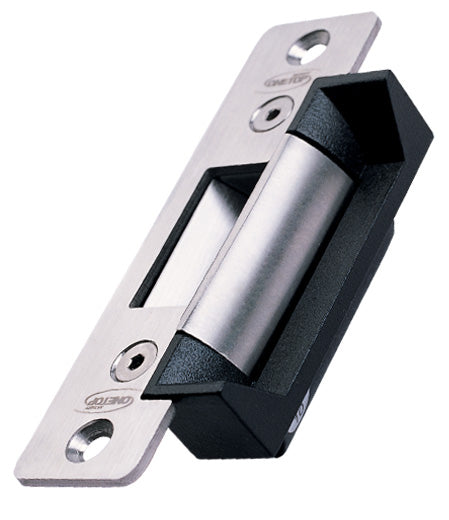

FES1001M (FES10M) Ansi Multi-Function Electric Strike, Monitored, 12V/24V, Power to Open/Power to Lock 125L x 42W x 35D in Satin Stainless
1 1

FSH FES10M Electric Strike Monitored 12/24V DC - Not Weather Resistant

$295.30
$295.30 $295.30
Save 0
Sold out
Tax included.

FSH FES10M Electric Strike Monitored 12/24V DC - Not Weather Resistant

An Electric Strike is an access control device used to lock and release doors. Electric Strikes are installed in or on the door frame and work in conjunction with mechanical door locks, on the principle of electronically controlling the rotation of the keeper. This allows doors to be opened without manual retraction of the mechanical door lock.

The FES10 Series electric strikes are designed for light commercial and residential applications. With a small ANSI footprint, the strikes accept either 12 or 24VDC and have been tested to a 4-hour fire rated in accordance with AS 1530.4:2005.

The strikes are easily Power To Lock (PTL) / Power To Open (PTO) field changeable by simply changing over the barbell mechanism. The device is pre-drilled to cater for extension lips, comes with a 5 year warranty and has a holding strength of up to 1000kg.

The FES10M version has Door Status Sensor monitoring.

Specifications:

  • Stainless steel faceplate and keeper
  • Barbell mechanism for simple change of locking function
  • Low power consumption
  • Compatible with door latch depth of up to 15mm
  • Superior holding strength of up to 1000kg
  • 5 year warranty
  • 12 or 24 VDC operation
  • Pre-drilled for extension lips

    • Delivery Time:

    Downloads:

    Brochure

    Installation Instructions
