FSH HIGH SEC ELEC STRIKE 10MM LIP BLK/SIL MON LSS DSS 1490KG H/FORCE FAIL SAFE/ FAIL SECUR in Satin Stainless
1 1

FSH FES20M Electric Strike Monitored 12/24VDC

$394.87
$394.87 $394.87
Save 0
Sold out
Tax included.

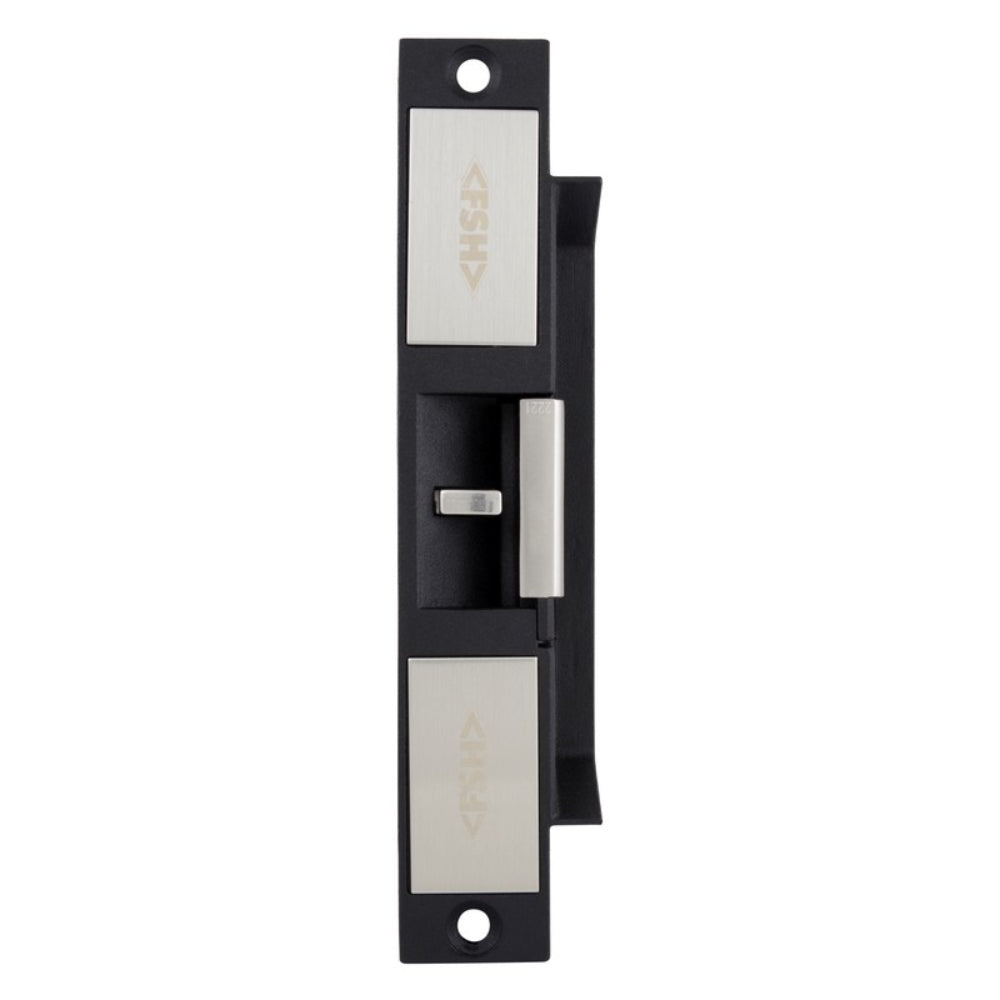

FSH FES20 Electric Strike Monitored 12/24VDC

An Electric Strike is an access control device used to lock and release doors. Electric Strikes are installed in or on the door frame and work in conjunction with mechanical door locks, on the principle of electronically controlling the rotation of the keeper. This allows doors to be opened without manual retraction of the mechanical door lock.

The patented FES20 Series high security electric strikes are manufactured from stainless steel, accept voltages from 12 to 36VDC and have a simple and unique Power To Lock (PTL) / Power To Open (PTO) field selectable mechanism, with no loose screws or pins.

The FES20M monitored electric strike provides full monitoring including LSS (Lock Status Sensor), DSS (Door Status Sensor) and ATS (Anti-Tamper Sensor).

All FES20 strikes come with a 10mm strike lip as standard and are also pre-drilled for extension lips.

Specifications:

  • FES20M Fully monitored, door latch monitoring (DSS)
  • Lock Status Monitoring (LSS)
  • Strike installed in frame (ATS)
  • Mortice Mount
  • Holding Strength: Up to 1200kg
  • 4 Hour Fire Rating
  • Multi Voltage, 12VDC,24VDC

    • Features

  • 5 year warranty
  • Simple Power To Lock (PTL) / Power To Open (PTO) field
  • Interchangeable mechanism
  • No loose pins and springs
  • Pre-drilled for extension lips
  • Mounting kit included

    • Delivery Time:

    Downloads:

    Brochure

    Installation Guide
