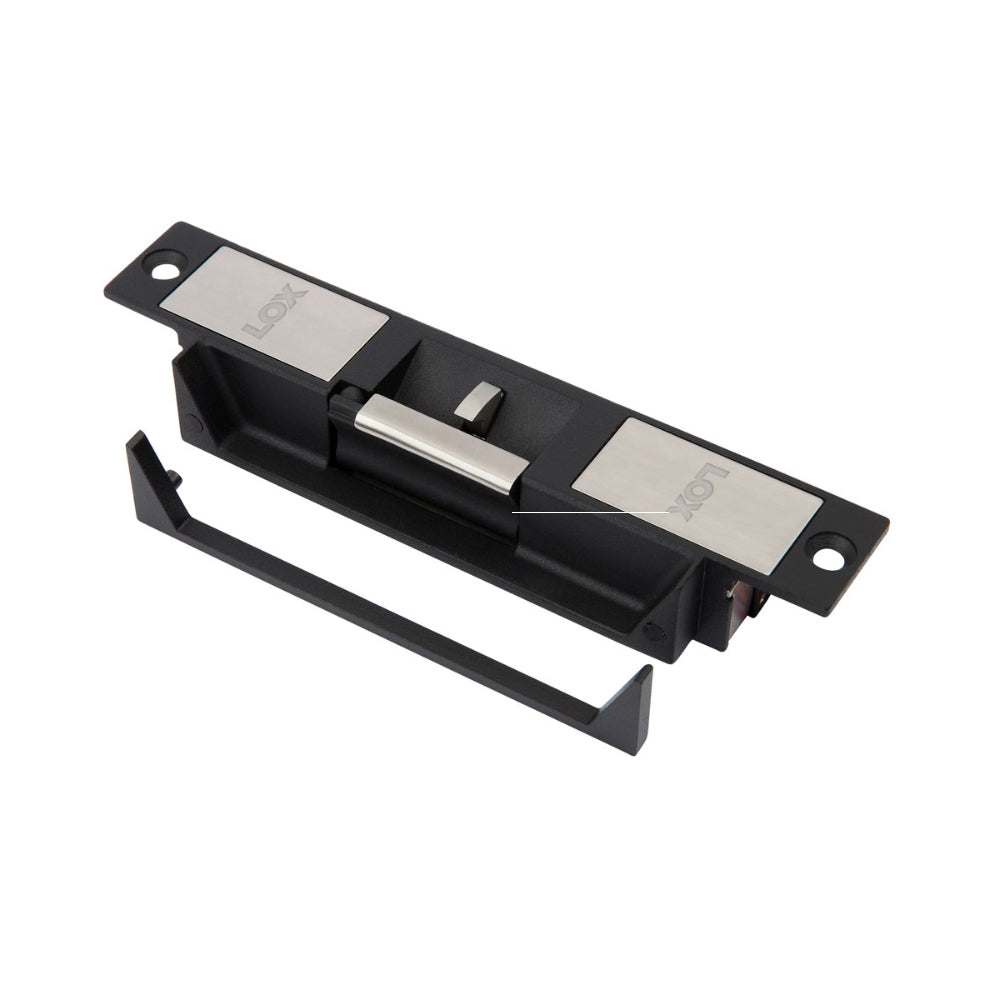

LOX ES20 Electric Monitored 12/24VDC - Not Weather Resistant
The LOX High Security ES20 is suitable for 18mm latch with a 3mm door gap. Designed for use with all access control systems.Retrofit compatible with FSH and Padde Australian Footprint strikes. Comes with a 10mm strike lip as standard. Fail safe/fail secure is changeable on site.
Features:
Electric strikes are designed for use with all access control system
Retrofit compatible with FSH and Padde Australian Footprint strikes
Comes with a 10mm strike lip as standard
Fail safe/fail secure is changeable on sitet
Suitable for use on hinged doors to work with an extensive range of locks
Successfully fire rated up to 4hrs on fire door assemblies
Monitored - Door latch monitoring (DSS) and Lock status monitoring (LSS)
Anti-tamper sensor (ATS)
Fire rated up to 4 hours
Power to lock/power to open field selectable
Solenoid can be continuously powered
Optional extension lips
Self adhesive installation template
Includes tab mounting kit
Pre-drilled for extension lips
Supplied with silencer rubber buffer
ES20M is suitable for 18mm latch with a 3mm door gap.
Specifications:
Voltage: 10 - 30VDC, 250mA at 12VDC, 125mA AT 24VDC
Current: 12vdc @ 250mA, 24vdc @ 125mAt
Holding Strength: up to 1000kg Tested to 1.5 Million Cycles
LSS Monitoring: Status sensor of the internal locking mechanism
DSS Monitoring: Door latch sensor, door latch engaged within strike keeper
ATS Monitoring: Door strike removed or repositioned sensor
Temperature: Range - 20 degress celcius to 60 degrees celcius
