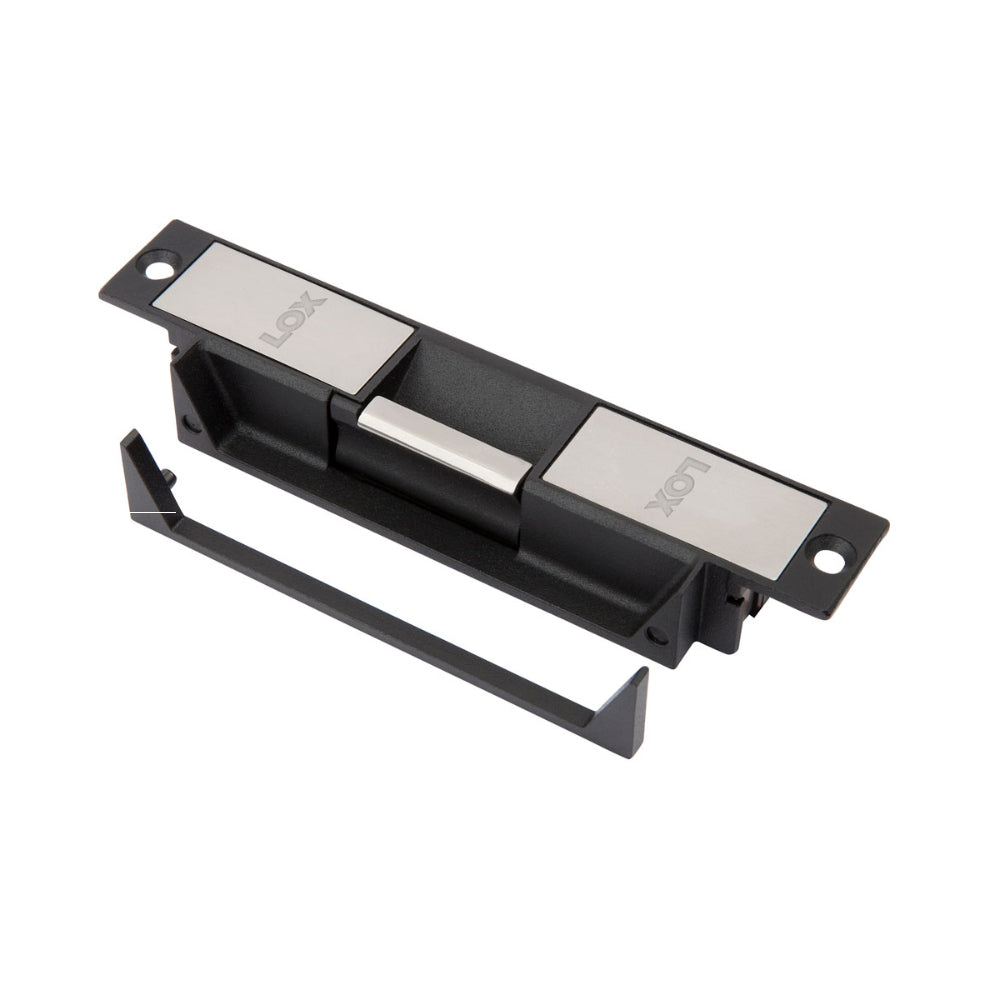

LOX ES20 Ansi Multi-Function Electric Strike, Non Monitored, 12V/24V, Power to Open/Power to Lock 176L x 44.5W x 26.5D in Satin Stainless
1 1

LOX ES20 Electric Strike Non-Monitored 12/24V DC

$312.13
$312.13 $312.13
Save 0
Sold out
Tax included.

LOX ES20 Electric Strike Non-Monitored 12/24V DC

The LOX High Security ES20 is suitable for 18mm latch with a 3mm door gap. Designed for use with all access control systems.Retrofit compatible with FSH and Padde Australian Footprint strikes. Comes with a 10mm strike lip as standard. A 5mm lip extension is included with the strike if needed. Fail safe/fail secure is changeable on site.

Features:

  • Non Monitored
  • Fire rated up to 4 hours
  • Power to lock/power to open field selectable
  • Solenoid can be continuously powered
  • Optional extension lips
  • Self adhesive installation template
  • Includes tab mounting kit
  • Pre-drilled for extension lips
  • Supplied with silencer rubber buffer

    • Specifications:

  • Voltage: 10 - 30VDC, 250mA at 12VDC, 125mA AT 24VDC
  • Current: 12vdc @ 250mA, 24vdc @ 125mA,
  • Holding Strength: up to 1000kg Tested to 1.5 Million Cycles
  • Temperature: Range - 20 degress celcius to 60 degrees celcius
  • Material: Stainless Steel

    • Delivery Time:

    Downloads:

    Technical Drawings
