RAVEN RP126Si Door Bottom Seal 920mm in Clear Anodised
1 1

Raven RP126Si

$205.00
$205.00 $205.00
Save 0
Sold out
Tax included.
  • SKU:
    WSRP126Si.1070.CA
  • Vendor:
    Raven

An adjustable, automatic door bottom seal that is spring loaded to lift clear of the floor when the door is opened. Acoustically designed, featuring extruded silicon gaskets for medium temperature smoke applications. RP126Si is operated automatically by pressure on the door jamb or stop by its adjustable strike. It is self levelling.

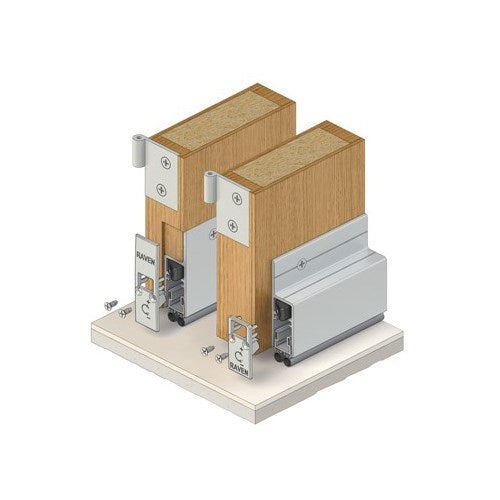

  • Location:Face mounted or semi-morticed into the bottom of single and double solid core butt hinged doors. Minimum door thickness of 35mm recommended for semi morticed installations with plain meeting stiles. Minimum door thickness of 40mm recommended for semi-morticed installation with rebated meeting stiles. RP126Si can also be face mounted to the bottom of metal doors.
  • Min/Max Gap: 3mm to 14mm.
  • Finish: Satin clear (silver) anodised aluminium (15µm) or paint at extra cost.
  • Fixing: Screw fix. Colour matched escutcheon plates and zinc plated, cross recess head S.T. screws supplied.
  • Seal:RP3126Si. Black silicon rubber (SE).
  • Sizes: 1500mm, 1220mm, 1070mm, 920mm, 820mm, 600mm to 305mm (min). Seals cut back to exact size.
  • Cert. GVYI.R37913
  • Acoustic AUS/NZ:NCC Spec. F5.5
  • UK/EU:Approved Document E. Rated to BS EN ISO 717-1.
  • Fire AUS/NZ: NCC Spec. C3.4. AS1530.4 & AS/NZS 1905.1. NZ BC Compliance Doc. C/AS1 6.19.2 & App. C6.1.1.
  • UK/EU:Approved Document B. BS EN 1634-1.
  • FRL & FRR-/240/30.
  • Gasket flammability index 1 when tested to AS1530.2.
  • SmokeNCC Spec. C3.4. AS1530.7 & BS EN 1634-3. Meets smoke leakage rates specified in AS6905 & EN 13501- 2 “Sa”, “Sm”
  • EnergyNCC Pt. 3.12.3.3 & J3.4.
  • DurabilityTested to over 1,000,000 operating cycles without failure.

Delivery Time:

Downloads:

Brochure
