RAVEN RP87Si Perimeter Seal, Long Single Door Set 6300mm - Sides 2750mm, Top 1000mm in Clear Anodised
1 1

Raven RP87Si - Door Sets

$774.47
$774.47 $774.47
Save 0
Sold out
Tax included.
  • SKU:
    WSRP87Si.DDS.BK
  • Vendor:
    Raven

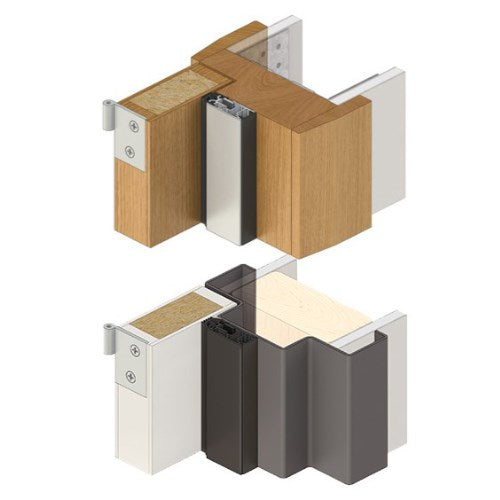

RP87Si is an effective door stop seal for noise, light and smoke. It can be butt jointed for a neatly finished continuous seal, replacing the conventional doorstop on metal or timber framed doors. With tamper proof concealed fixings, the RP87Si utilises independently adjustable screws to achieve up to 6mm sealing adjustment for maximum noise control. The silicon rubber seal only requires normal door closing force. Note: If fixing to rebated frames of single doors, specify a long backset door latch.

  • Location:Head and jambs of single and double butt hinged doors.
  • Min/Max Gap:0mm to 6mm.
  • Finish: Satin clear (silver), black anodised aluminium (15µm) or paint at extra cost.
  • Fixing:Concealed screw fix. Zinc plated, cross recess head S.T. screws and cover strip supplied.
  • Seal:RP310Si. Black silicon rubber (SE).
  • Sizes: Available in door set sizes or stock lengths.
  • Cert. GVYI.R37913.
  • Acoustic AUS/NZ:NCC Spec. F5.5.
  • UK/EU: Approved Document E. Rated to BS EN ISO 717-1.
  • Fire AUS/NZ:NCC Spec. C3.4. AS1530.4 & AS/NZS 1905.1. NZ BC Compliance Doc. C/AS1 6.19.2 & App. C6.1.1.
  • UK/EU: Approved Document B. BS EN 1634-1.
  • FRL & FRR-/240/30 and FD240.
  • Gasket flammability index 1 when tested to AS1530.2.
  • SmokeNCC Spec. C3.4. AS1530.7 & BS EN 1634-3. Meets smoke leakage rates specified in AS6905 & EN 13501- 2 “Sa”, “Sm”.
  • EnergyNCC Pt. 3.12.3.3 & J3.4.

Delivery Time:

Downloads:

Brochure
